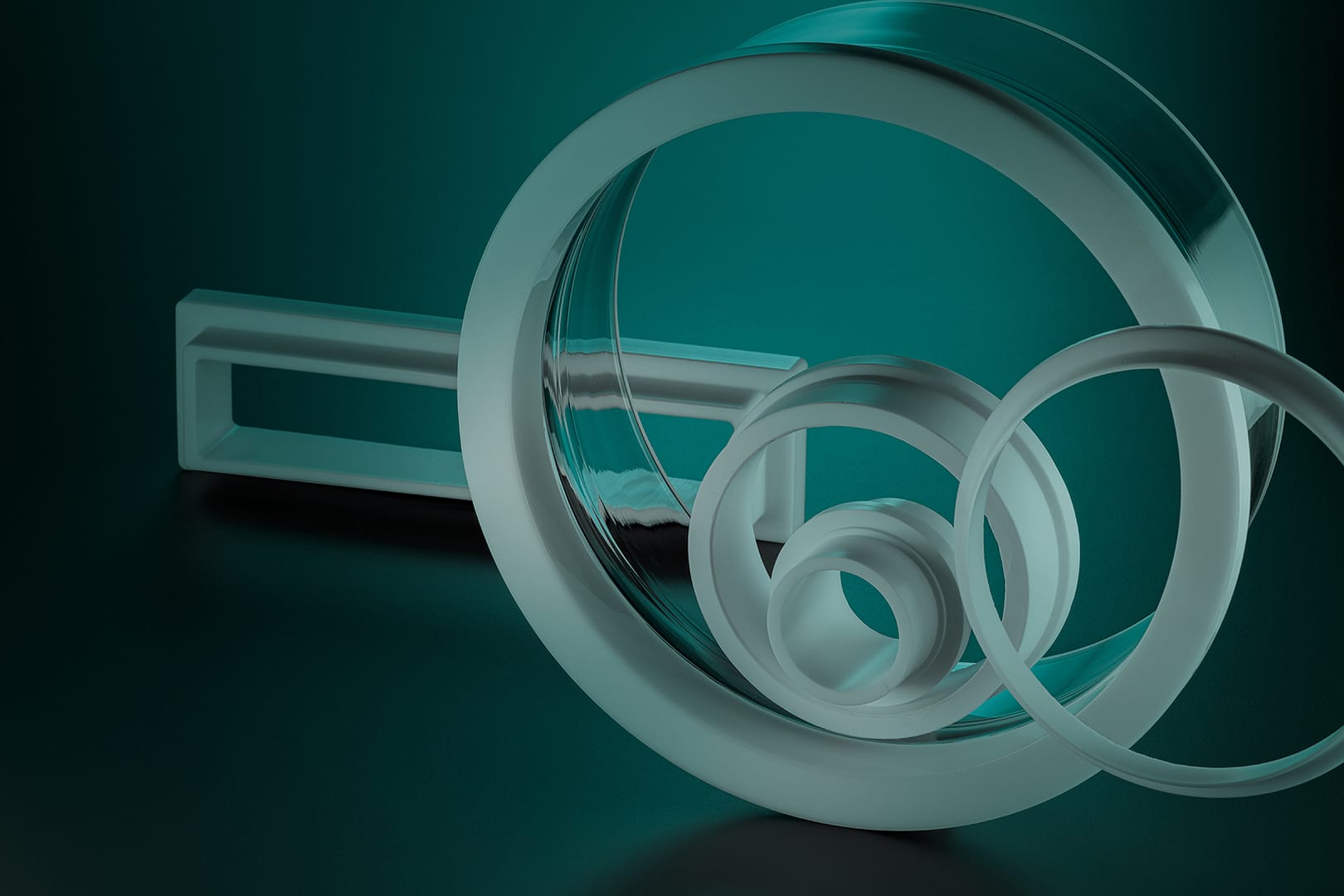

Near Net Shaped Flanges
With the IQS moulding process it is possible to produce near net shaped flanges made of Diffusil®-S up to an outside diameter of 380 mm. The quasi-finished geometry can then be brought to the final dimension with little effort in a finishing step. This allows considerable savings in machining times and ultimately cost savings.
Flanges made of Diffusil®-S can be processed by standard hot processing techniques without losing their opacity. Welding these flanges together with Verusil or clear quartz glass of other manufacturers is possible without any problems.
![IQS 0004 IQS 20200616 05.tif](https://mlyiavoxsf0l.i.optimole.com/w:800/h:534/q:mauto/f:best/ig:avif/https://www.iqs.glass/wp-content/uploads/2020/06/IQS_0004_IQS-20200616-05.tif.jpg)
![IQS 0002 IQS 20200616 03.tif](https://mlyiavoxsf0l.i.optimole.com/w:800/h:534/q:eco/f:best/ig:avif/https://www.iqs.glass/wp-content/uploads/2020/06/IQS_0002_IQS-20200616-03.tif.jpg)
Fused Silica Rings for Liners
We manufacture opaque fused silica rings from Diffusil®-S as semi-finished products for liners in dimensions of up to 400 mm outside diameter and a wall thickness of up to 50 mm. The rings are usually manufactured with a material oversize of 5 mm on the outer and inner diameter and the rings height.
This small oversize contributes to a considerable material saving of the semi-finished products and reduces the time required for the subsequent mechanical processing to the final quartz glass liner.
