Products
for
Analytics & Laboratory

All products listed below are exemplary series products. If you would like to get to know the entire IQS product range from this application area, please contact us.

IQS 20200716 04 petrol Kopie 2

Products for automated analysis systems

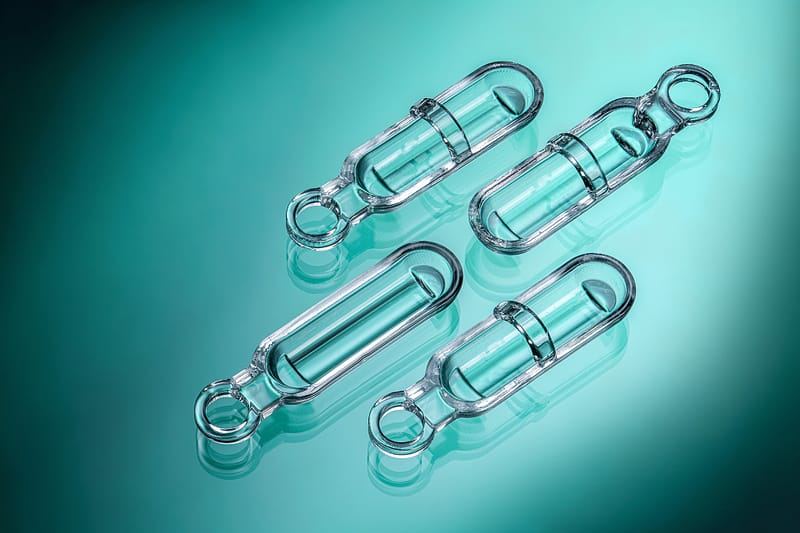

Fused Silica – Combustion Boats
Our  transparent fused silica Verusil is used to produce a wide range of geometrically demanding combustion and analysis boats with high reproducibility and tight tolerances. These products guarantee a trouble-free use in the automatic loading and gripper systems of the analyzers of well-known manufacturers such as analytik Jena, Metrohm and others.

The combustion boats are free of organic substances and halogens and ideally suited for the use in trace element analyses such as AOX, EOX; POX, TOC and Hg.

IQS 20200716 04 petrol Kopie 2
IQS 20200716 06 petrol Kopie 2

Fused Silica Glass – Hook
Loading hooks of fused silica glass with reproducible geometry are suitable for the use in automated high-temperature analysis processes together with combustion boats. By using a small piece of opaque fused silica within the long transparent rod, the heat radiation that is coupled into the quartz glass rod during high temperature analysis can be effectively blocked. As a result, the quartz glass rod remains cool and no heat radiation is emitted. This protects the user or the automatic loading system from high temperatures.

IQS 20200716 06 petrol Kopie 2

Standard products for
Analytics & Laboratory

In addition to customer-specific products IQS manufactures selected standard assortments of threads, small flanges and spherical ground joints according to DIN from Verusil and Diffusil®.
